Exploits > SCPH-90K 2.30 BOOTROM and PS2TV > MCP2

Great! Here is your OpenTuna download for MCP2:

Step 1 - MMCE Download

Download MCP2 OpenTuna
Extract the download to your MCP2 SD card.

Step 2 - Firmware Update

Download and update the MCP2 Firmware
Extract the zip and place on root of your SD card. Insert SD card into MCP2.
Plug into power or PS2 and power on. (Tip: leave MCP2 plugged into USB power) The MCP2 will show a progress bar updating the firmware.
DO NOT REMOVE USB/POWER WHILE UPDATE IS IN PROGRESS!

Step 3 - MCP2 Wifi

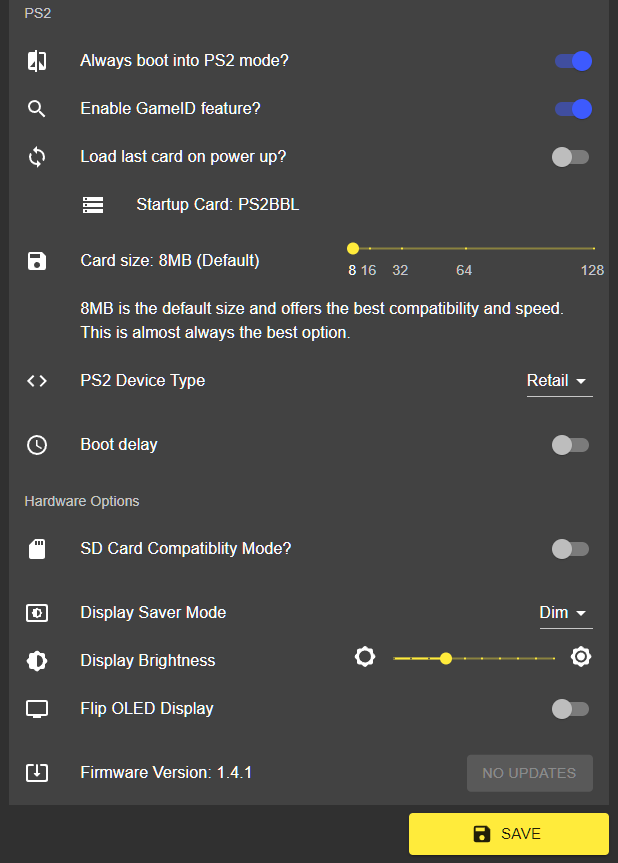

Using the MCP2 WEB UI directions, make MCP2 join wifi and set SD card compatibility to disabled

MCP2 Card Settings Screenshot:

mcp2-sdcardcompat

Step 4 - MCP2 WEB UI

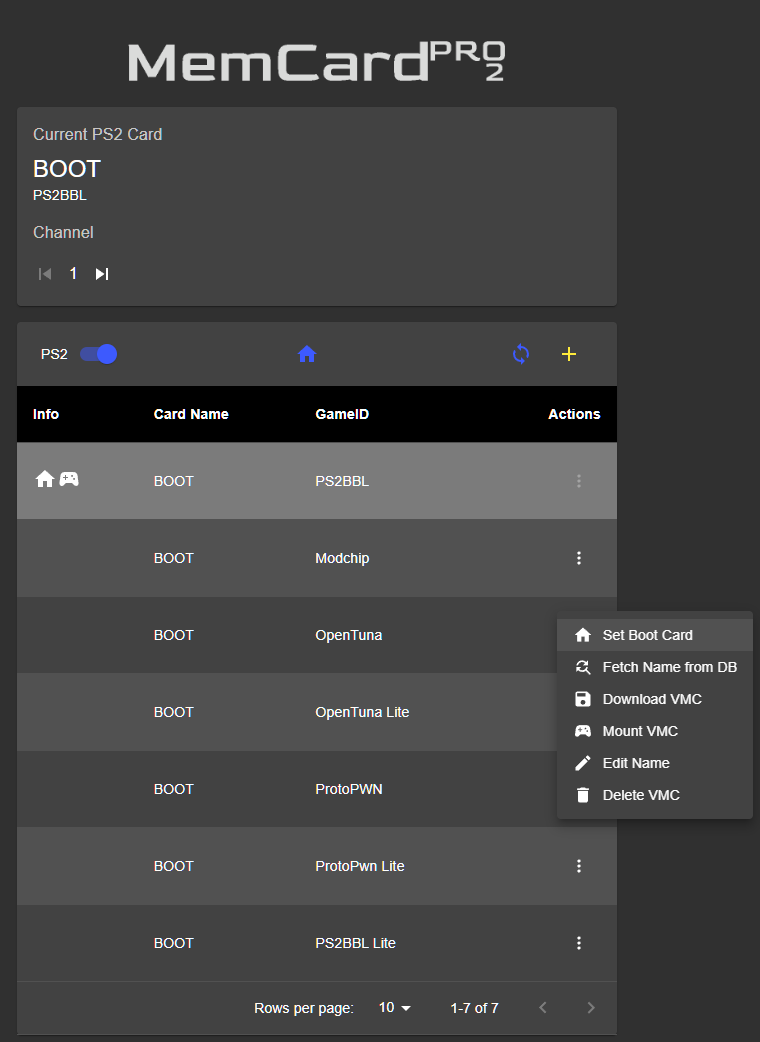

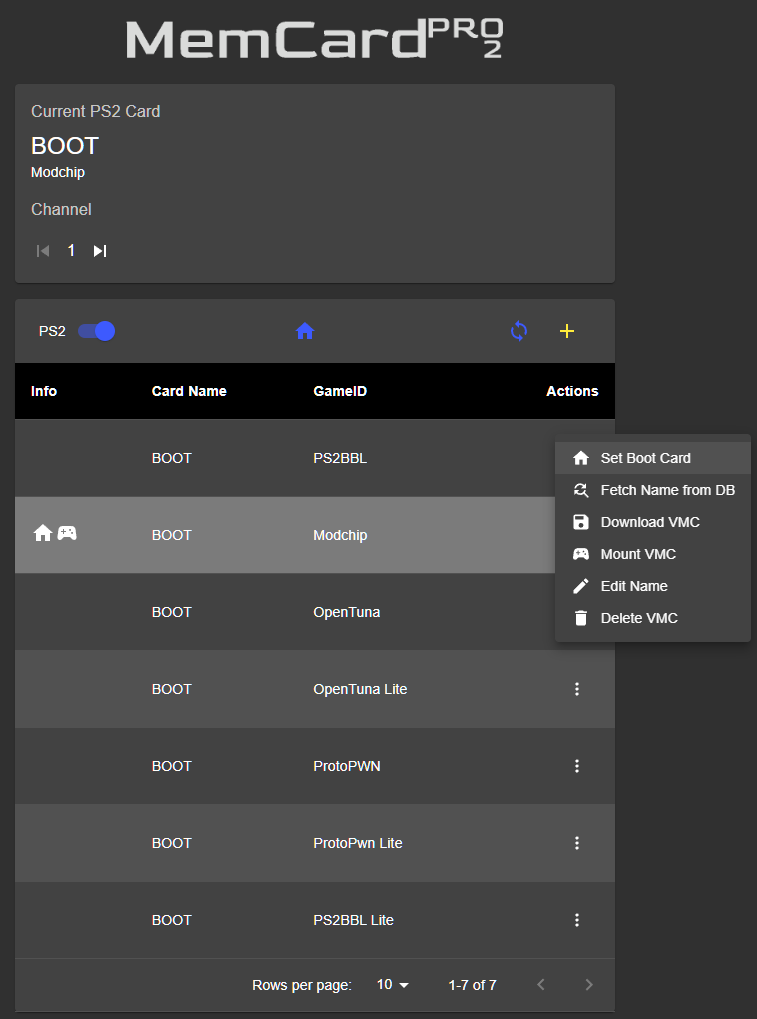

Using the MCP2 WEB UI, set the bootcard to OpenTuna and Mount VMC.

MCP2 BootCard Settings Screenshot:

mcp2-sdcardcompat

Step 5 - Reboot

Plug MCP2 into PS2 if you have not, then boot/reboot the PS2. You should see the screenshots below:

Example of what you will encounter:

unhacked_Pic — **Step 1:** Select `Browser`

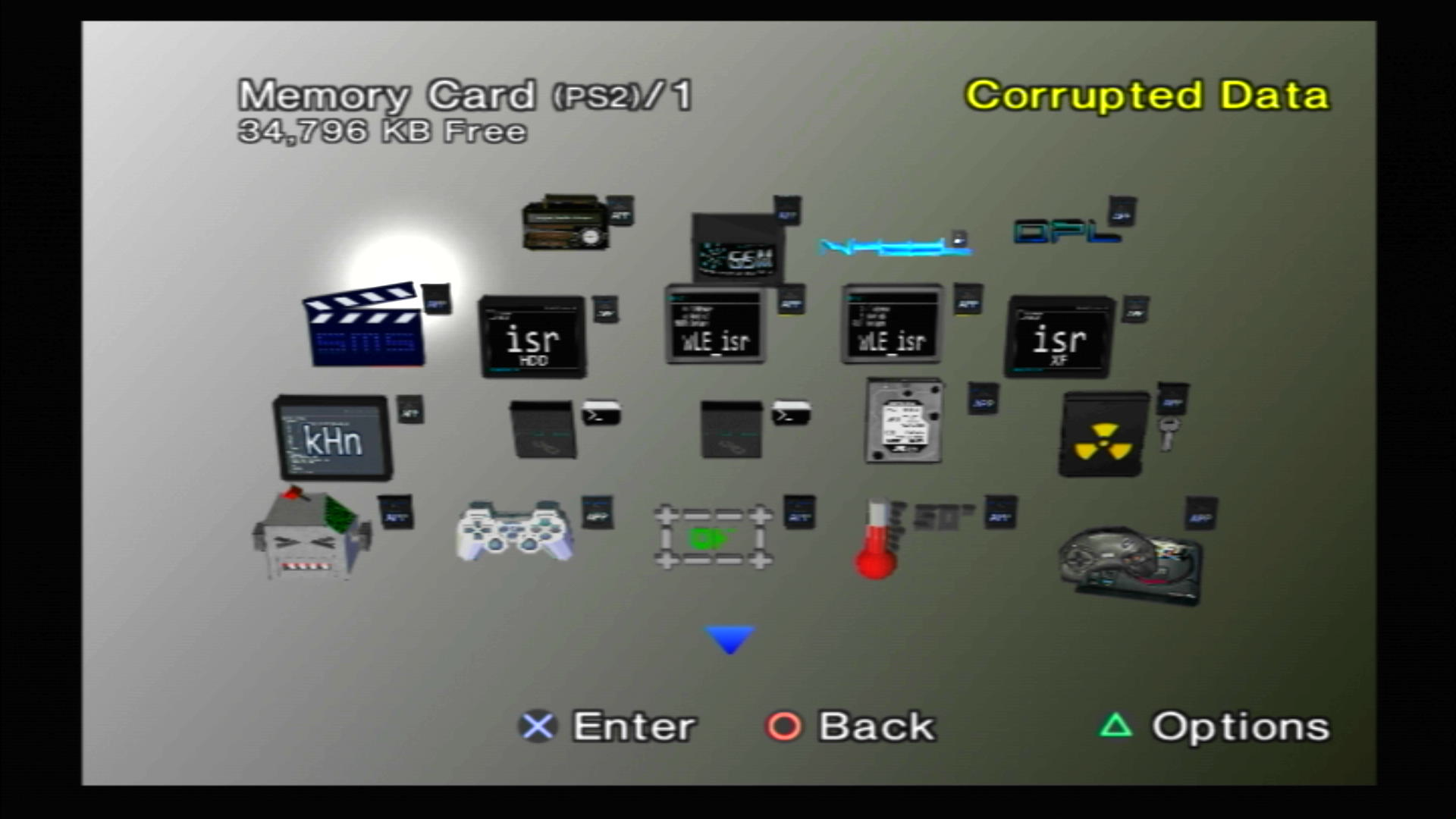

memcard_Pic — **Step 2:** Select `Memory Card 1`

corrupted-icon_Pic — **Step 3:** Press `Back`

Step 4: Press Back

PS2BBL_Pic — **Step 5:** Press controller button here for hotkeys or wait for it to autoboot what you have set for LK_AUTO_E? in `mc?:/SYS-CONF/PS2BBL.INI`

OSDMenu_Pic — **Step 6:** OSDMenu which is hacked OSDSYS. Edit `mc?:/SYS-CONF/OSDMENU.CNF` as desired. Simply remove `#` per entry to show items that are hidden.

protopwn-browser_pic — **TIP:** You can launch apps from here!

Step 6 - OSDMenu Configurator

Scroll down to the 3rd from bottom entry: OSDMenu Configurator
You will use this to show, hide, and edit your OSDMenu configuration. As OSDMenu shows all enabled entries, not just all found paths, we have configured a clean minimal setup that you may wish to change.

Boot Process:

---
config:
  theme: mc
  layout: elk.forced
  look: classic
---
graph LR
    A(["PS2 Power On/Reset"]) L_A_B_0@-- "BOOTROM 1.00-2.20" --> B["OSDSYS UPDATE<br>B?EXEC-SYSTEM<br>(PS2BBL/ProtoPwn UMCS)<br>./CONFIG.INI <br>DOES NOT EXIST!"]
    A L_A_n1_0@-- "BOOTROM 2.30,2.50<br>and DEV 1 Modchips" --> n1["OPENTUNA/DEV 1 CHIPS<br>mc?:/BOOT/BOOT.ELF<br>(PS2BBL)<br>./CONFIG.INI <br>DOES NOT EXIST!"]
    B L_B_n5_0@-- "Fall back to SYS-CONF" --> n5@{ label: "<pre style=\"font-family:\"><code style=\"font-family:\">mc?:/SYS-CONF/PS2BBL.INI</code></pre>" }
    n1 L_n1_n5_0@-- "Fall back to SYS-CONF" --> n5
    n5 --> n6["AutoLaunch<br>or<br>Hotkeys"]
    n6 --> n7@{ label: "<span style=\"--tw-scale-x:\"><b><span style=\"--tw-scale-x:\">PS2BBL.INI AUTOLAUNCH</span><br style=\"--tw-scale-x:\"></b></span><br style=\"--tw-scale-x:\"><span style=\"background-color:\">1: EMPTY</span><br style=\"--tw-scale-x:\"><br style=\"--tw-scale-x:\"><span style=\"background-color:\">2: EMPTY</span><br style=\"--tw-scale-x:\"><br style=\"--tw-scale-x:\"><span style=\"--tw-scale-x:\">3: SYS_OSDMENU</span><br style=\"--tw-scale-x:\"><br style=\"--tw-scale-x:\"><span style=\"--tw-scale-x:\">4: SYS_FMCBD-1966</span><br style=\"--tw-scale-x:\"><br style=\"--tw-scale-x:\"><span style=\"--tw-scale-x:\">5: SYS_FMCBD-1965</span><br style=\"--tw-scale-x:\"><br style=\"--tw-scale-x:\"><span style=\"--tw-scale-x:\">6: SYS_FMCBD-1955<br style=\"--tw-scale-x:\"></span><br style=\"--tw-scale-x:\"><span style=\"background-color:\">7: SYS_FMCBD-18C</span><br style=\"--tw-scale-x:\"><br style=\"--tw-scale-x:\"><span style=\"--tw-scale-x:\">8: BOOT/BOOT2.ELF<br style=\"--tw-scale-x:\"><br style=\"--tw-scale-x:\">9: OSDSYS</span>" }
    B@{ shape: rect}
    n1@{ shape: rect}
    n5@{ shape: proc}
    n6@{ shape: diam}
    n7@{ shape: lin-proc}
     A:::Ash
    classDef Ash stroke-width:1px, stroke-dasharray:none, stroke:#999999, fill:#EEEEEE, color:#000000
    style A stroke:#00C853,fill:#00C853,color:none
    style B color:#D50000,fill:transparent
    style n1 color:#D50000,fill:transparent
    style n5 fill:transparent,color:#00C853
    style n6 fill:#00C853,color:#000000
    style n7 fill:#FFF9C4
    linkStyle 0 stroke:#00C853,fill:none
    linkStyle 1 stroke:#00C853,fill:none
    L_A_B_0@{ animation: slow }
    L_A_n1_0@{ animation: slow }
    L_B_n5_0@{ animation: slow }
    L_n1_n5_0@{ animation: slow }

Landing on your hacked OSDSYS of choice:

PS2BBL.INI and PSXBBL.INI are setup so that minimal config changes are needed if at all. To land on your hacked OSDSYS of choice, install the OSDMenu/ FMCB Version XXXX as needed. If multiple are installed (such as the MMCE AIO downloads), you can delete in order from first to last to land on the desired app. This is especially useful for modchip users as they may not play well or at all with some or all of the OSDSYS such as I believe Mars Pro. In that case, just delete all of the SYS_OSDMENU and SYS_FMCB-XXXX folders. Modchip users may need to disable chip to do so.

PS2BBL Hotkeys:

Emergency Mode

If something breaks on your setup but PS2BBL still boots, just hold R1+START. It will trigger emergency mode where PS2BBL will try to boot RESCUE.ELF from USB device Root on an endless loop. Recommended to rename wLE ISR Exfat to RESCUE.ELF

VMCs included:

PS2BBL and PS2BBL Lite
OpenTuna and OpenTuna Lite
ProtoPwn and ProtoPwn Lite
Modchip

Lite? What does that mean?

"Lite" VMCs only have exploit+UMCS installed. These will autoboot PS2BBL (hotkeys and autolaunch) to wLE ISR XF (file manager and elf loader).

Otherwise VMCs come pre-installed with exploit+UMCS+homebrew. Homebrew that cannot be installed due to licensing or device requirements are not included: for example XEB+ and RETROLauncher.
